Description

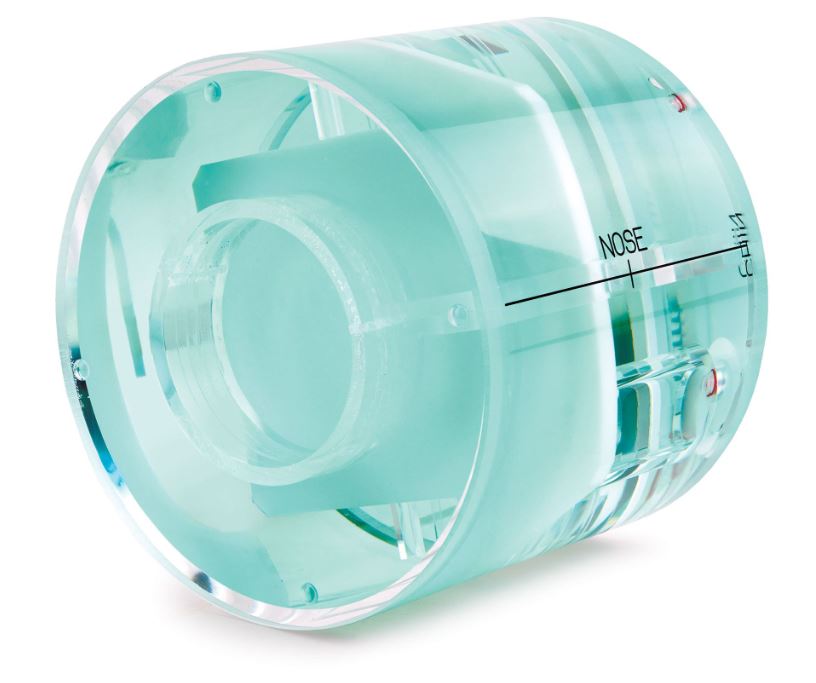

The ACR MRI Phantom is an 8" (203.2 mm) diameter cylinder, 6.82" (173.40 mm) tall with various fixtures inside, including a grid, cylinders, and other points of interest. Marked with reference points for nose and chin. The Phantom is approved by the American College of Radiology and is compatible with the ACR Phantom Cradles.

Approved by American College of Radiology and for Joint Commission Accreditation use Reference points for nose and chin Compatible with all of our Phantom Cradles Includes small all plastic level

Specifications

• diameter cylinder: 8” (203.2mm)
• Lenght: 6.82” (173.40mm)
• Volume: 3627 ml +/-10 ml
• Keep temperature between 60-80°F (15-27°C)
• level bar: 7.00” (177.80mm) length, .375” (9.53mm) width, .375” (9.53mm) height

Photos

Models

• ACR-PH1 - ACR MRI Phantom
• ACR-PH1-CASE - Hard Storage Case
• Option - ACR Cradle
