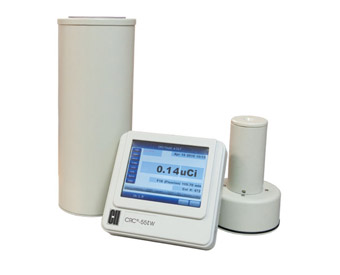

CRC-55tW Dose Calibrator

Description

As a combination of the new CRC®-55tR Dose Calibrator and Well Counter, the CRC®-55tW's dose calibrator provides advanced features with the speed and accuracy you need to measure activity and prepare doses. Its ion chamber is one of Capintec's time-tested, high pressure well designs capable of measuring a dose as high as 6 Ci (250 GBq) with high accuracy. The CRC®-55tW features a new helpful chamber plug-and-play capability.

For wipe testing, the CRC®-55tW allows the user to define specific counting procedures (protocols) with trigger levels for work, patient, unrestricted areas and sealed source leak tests. The CRC®-55tW also performs counting functions for wipe tests in as little as 6 seconds at activities as low as 1 nCi. Low activities are measured with a drilled well high sensitivity Sodium Iodide (NaI) detector.

The well counter includes a 256 channel MCA which provides detailed spectrum for identification and analysis. Manual and automatic ROI selection are available. The chamber and counter of the CRC®-55tW are combined in a menu driven, touch screen interface that is easy to learn and use.

Reports software, new for the CRC-55t-W, archives well counter data for quality assurance procedures, wipe measurements and laboratory tests. Well counter reports are stored and searchable by date range for later viewing or printing. Wipe tests are searchable by date range, wipe type, and activity.

Specifications

8" VGA touch screen color display
USB/PC Communications
Software upgrade thru USB of Flash Drive
USB printer capability
Chamber plug-and-play capability
Optional intelligent remote displays nuclide, activity, and performs daily tests
28 programmable nuclide keys
Built-in dose calibration, quality control and self diagnostics
Over 80 nuclides in memory
Automatic chamber QC including linearity
Hard copy records of data available from optional printer
Compatible with nuclear medicine information management systems via USB
256 channel MCA with detailed spectrum for identification analysis
Well counter for wipe and laboratory tests
Lab tests include Shillings, Plasma and RBC volume
User-definable protocols for wipe testing
Automated well QC including Chi-Square and MDA
Manual and Automatic ROI
Reports: well counter reports for autocalibration, system test, MDA, Chi-Square and laboratory tests are archived and searchable by date. Wipe tests are archived and searchable by date, type, land activity
Automated Linearity Testing and Geometry Testing
