Description

The barrier is made of 5, 10, 20, 30 or 50 mm lead covered in steel. Dimensions are 360*430 mm (W*D), the height is depending on the model. The lead glass window is mounted at an angle of 45˚ for an optimal view on the work area. The lead glass window has the same lead equivalent as the lead shielding with a density of 5,2 g/cm3. Lead glass dimensions are 350*280 mm (W*H). The table top barrier can easily be placed on a work table. The smooth oyster white (RAL 1013) finish ensures easy cleaning.

Specifications

• Base: 360 x 430 mm
• Lead glass window: 350 x 280 mm
• Front: 360 x 250 mm
• Total height: approx. 480 mm
• Colour: RAL 13 (oyster white)

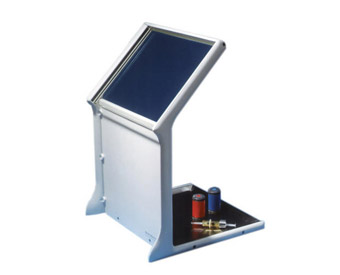

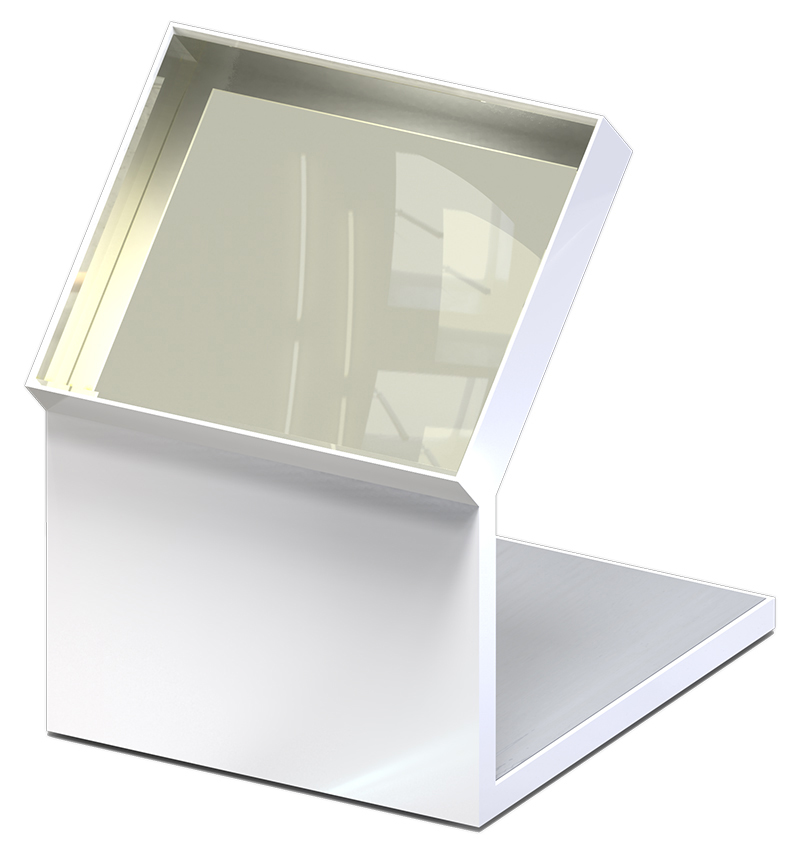

Photos

Models

• VG-TTB-5 Tabletop Shield 5 mm lead shielding, 140 Kev, height is 458 mm, weight ± 32 kg
• VG-TTB-10 Tabletop Shield 10 mm lead shielding, 140 KeV, height is 475 mm, weight ± 56 kg
• VG-TTB-20 Tabletop Shield 20 mm lead shielding , 364 KeV, height is 490 mm, weight ± 92 kg
• VG-TTB-30 Tabletop Shield 30 mm lead shielding, 364 KeV, height is 502 mm, weight ± 132 kg
• VG-TTB-50 Tabletop Shield 50 mm lead shielding, 511 KeV, height is 520 mm, weight ± 188 kg
  Lead glass dimensions: 350*250 mm (W*H)
  Barrier dimensions: 360*400*520 mm (W*D*H)
