Description

Specifically designed for use in high energy gamma applications (PET). The screen is made of 30 mm lead covered with steel plates finished oyster white (RAL 1013). The lead glass window is placed at an angle of 45˚ for optimal view of the patient during administration of the radiopharmaceutical. The width of the screen has specifically been designed to enable a better reach towards the patient while protecting the main part of the technologists’ body. Dimensions are 1435*610*630 mm (H*W*D) and the weight is ± 206 kg. The lead glass dimensions are 300*200*80 mm (H*W*D).The screen has a small tray on the patient side.

Specifications

Specifications
• Outside dimensions: 1435*610*630 mm (H*W*D)
• Weight: ± 206 kg
• Lead glass dimensions: 300*200*80 mm (H*W*D).
• Movable screen with optimal view due to the lead glass
• With a small tray on the patient side
• Made for shielding the body and still optimal reach to the patient
• Easy handling because of the 4 swivel wheels

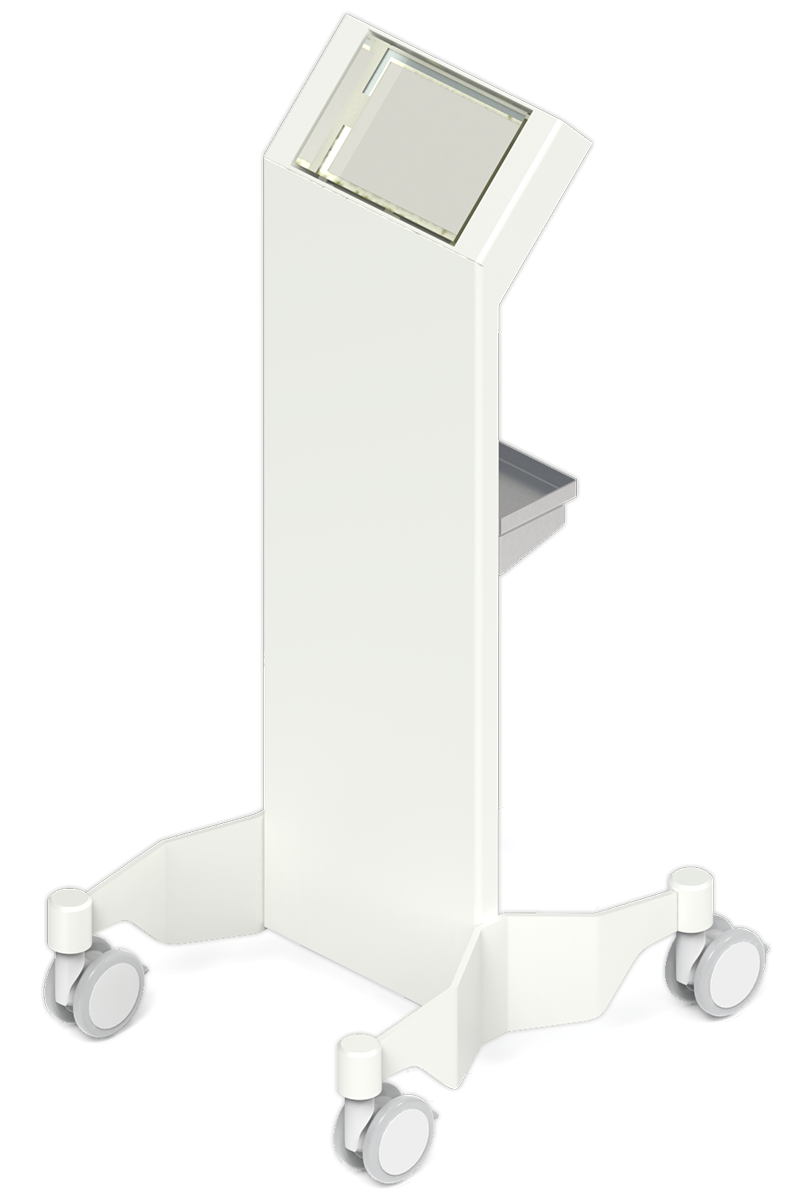

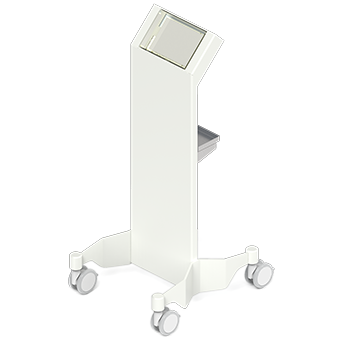

Photos

Models

• Model (with tray) VG-FW/PET/14/6/30
• Model (with tray) VG-FW/PET/AB-14/6/30
