Description

Designed for medical, industrial, and research facilities, the system can be accessed and controlled remotely by any PC or mobile device connected to your network through a web browser.

• 8 in. SVGA touch screen color display
• Easy to follow menu driven program
• Large bright easy to read digital display
• Bright color coded bar graph display
• Programmable units of measure (mR/hr or µSv/hr)
• Low and high programmable alarm levels
• Both visible and audible alarm states
• 12 hour battery life (non alarm state)
• Data logging stored on area monitor readout
• Setup menu available on touch screen
• Email alert sent via SMTP protocol
• Wall mount configuration
• Ethernet interface
• Three Dry Contact Relays

Specifications

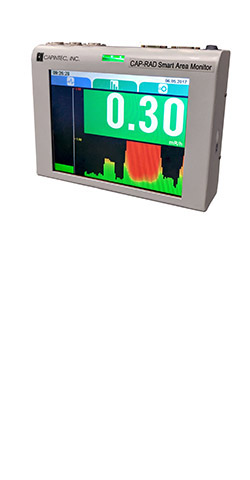

CAP-RAD Area Monitor
• Detector: energy compensated gas filled GM
• Detector operating voltage: 500 V
• Display: 8 in. SVGA touch screen color display
• Measurement range: 0.1 mR/hr to 1,000 mR/hr; 1.0 µSv/hr to 10 mSv/hr
• Response time: 1-3 s 90% FS
• Alarm types: Visual and Audible
• Alarm indicators-LED
• GREEN below alarm triggers
• YELLOW low level alarm state
• RED high level alarm state
• Loud beeping variable rate audible alarm
• Color coded bar graph matches alarm state
• Battery life: 12 hours without alarm state
• Battery status: RED LED when battery voltage is LOW
• Three SPDT electromagnetic relays with dry contacts
• Trigger event for each relay can be programmed individually
• Accessible by mobile device via web browser
• Includes wall mount power adaptor

Console Dimensions
• 6.3 x 8.5 x 2.2 in. (16 x 21.6 x 5.7 cm) (H x W x D)

Console Weight
• 4 lb (1.8 kg)

Power Requirements
• Wall mount power adaptor: Input: 100-240 V ac, 50/60 Hz Output: 5 V dc at 2 A 2.0 x 5.5 x 12 mm barrel connector plug
  or
• Ethernet (PoE): 48 V dc, 0.35 A

Models

• 5250-0022 - CAP-RAD Smart Area Monitor W/O PC Software
• 5250-0031 - CAP-RAD Smart Area Monitor W PC Software
