Description

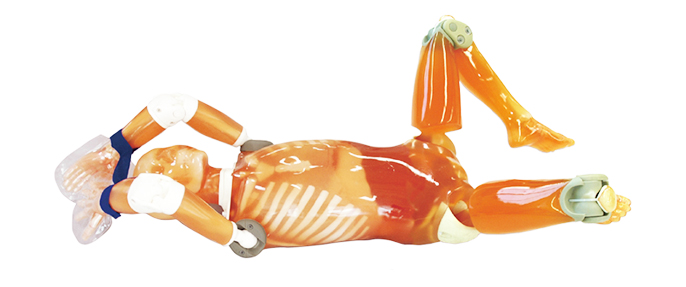

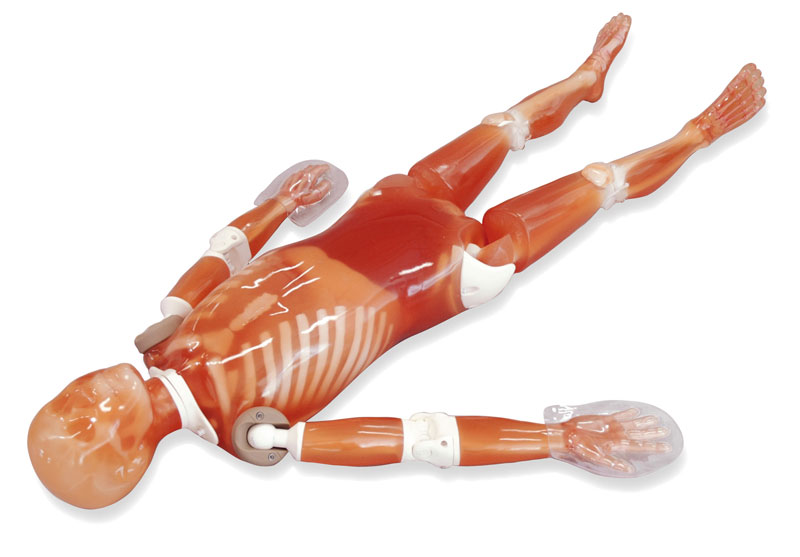

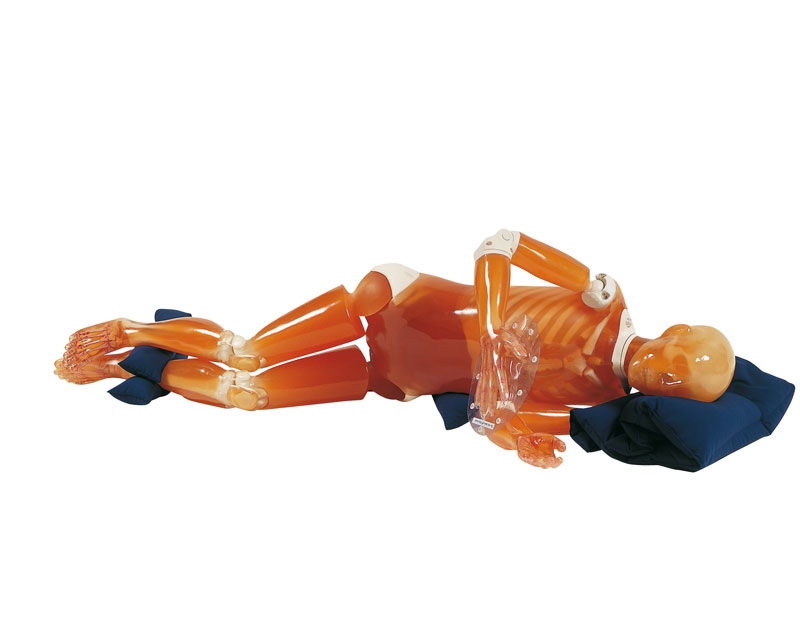

A unique, life size whole body phantom for CT provides a variety of educational application as well as visual evaluation in finding out optimal scanning conditions

• Radiology absorption and HU number approximate to human body
• Main joints have close-to human articulation
• Phantom can be disassembled into 10 individual parts

Specifications

()＝HU number at 80keV

Head:
• synthetic skull / spine / brain_cerebrum(40) / mesencephalon(40) / cerebellum(40) / cerebral ventricles(10) / eye balls(20) / arteries with contrast medium(left half only)(250)

Trunk:
• spine / clavicle / ribs / sternum / scapulae / lungs(-1000) / pulmonary vessels(8) / trachea(wall:8 / inside:-1000) / heart(40) / liver(70) / portal and hepatic veins(40) / pancreas(30) / kidneys(30) / gallbladder(20) / spleen(50) / seminal vesicle(25) / prostate(50) / aorta(40) / cava(70) / ureter(wall:30 / inside:10) / urinary bladder(10) / rectum(wall:70 / inside:-800) / sigmoid colon(wall:70 / inside:-800) / coxal bones

Limbs:
• humerus / antebrachial bone / bones of hand / femur / bones of foot

Bony structure:
• synthetic skull / cervical vertebrae / vertebrae / clavicles / ribs / sternum / scapula / coxal bones / femurs

Materials:
• Soft tissue: urethane based resin (specific gravity: 1.06)
• Synthetic bone: epoxy resin (specific gravity: 1.31)
• Skull: epoxy resin (specific gravity: 1.11)
• Phantom has no metal parts or liquid structure

• Phantom height: 165 cm
• Phantom weight: 50 kg/ 110 lb

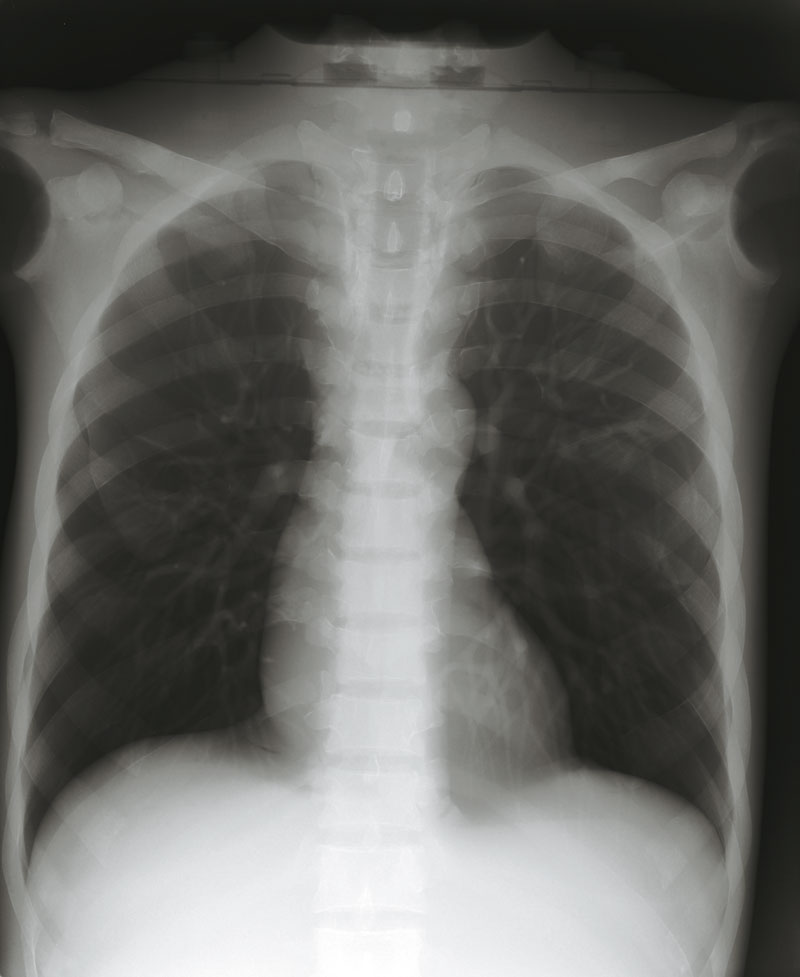

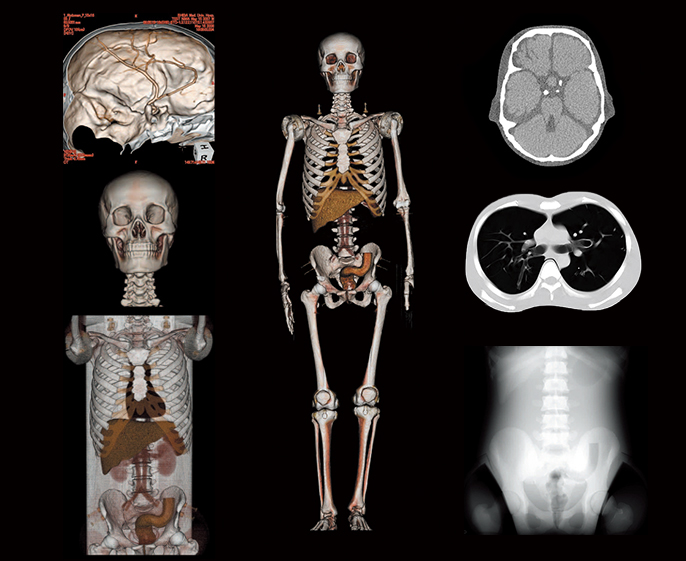

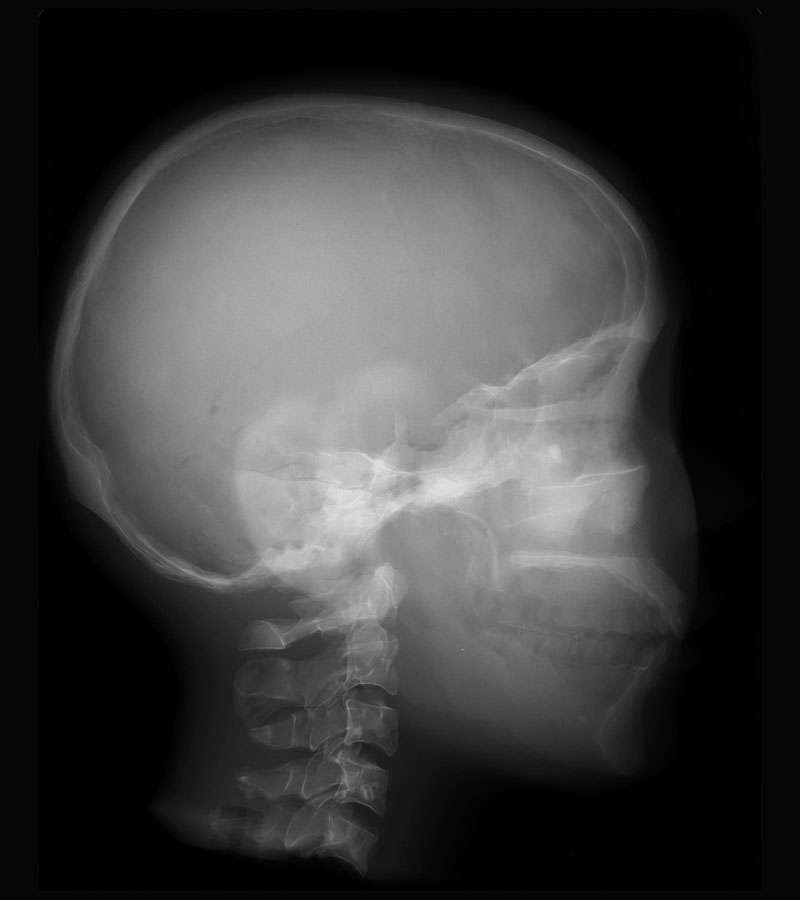

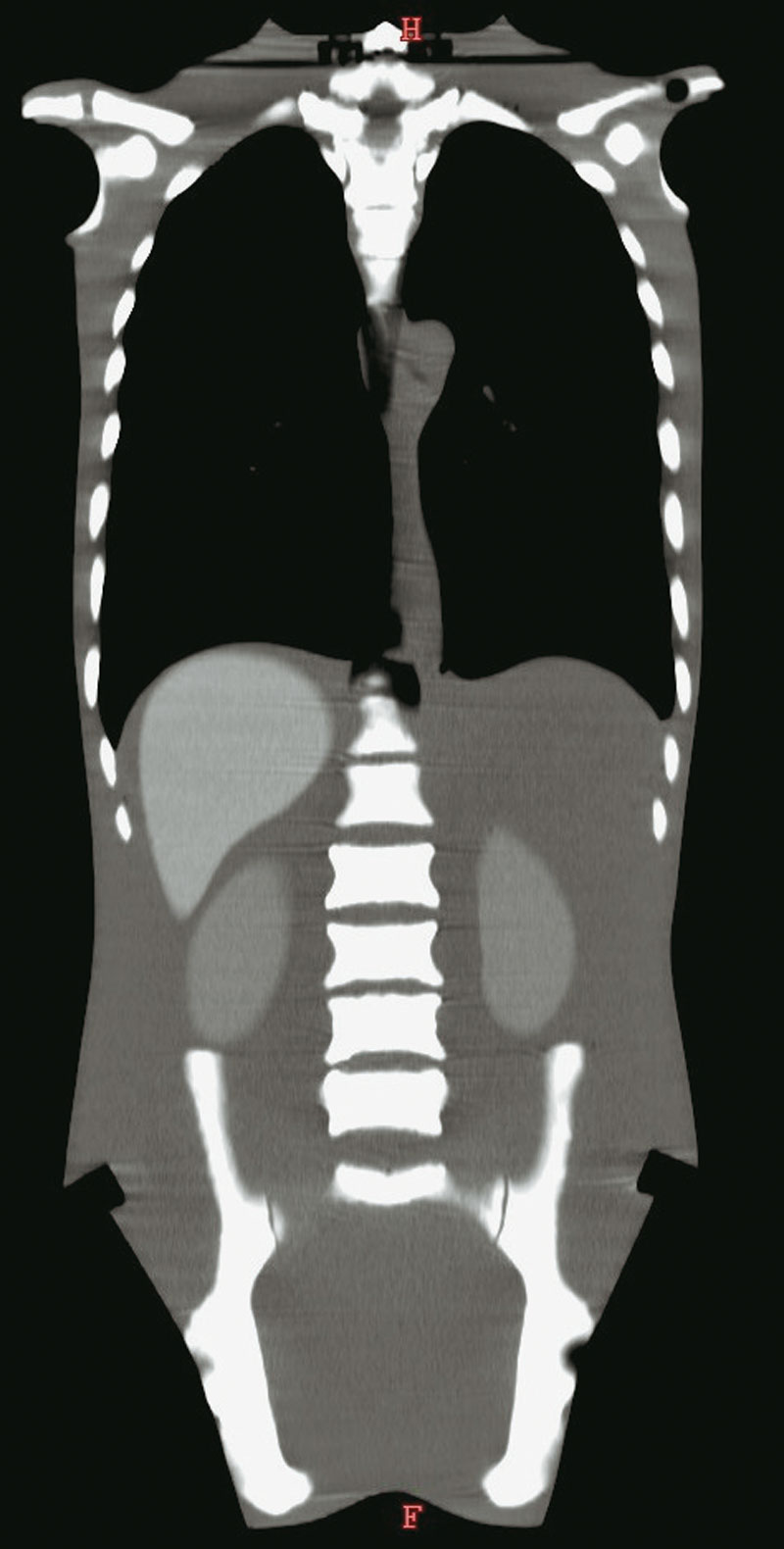

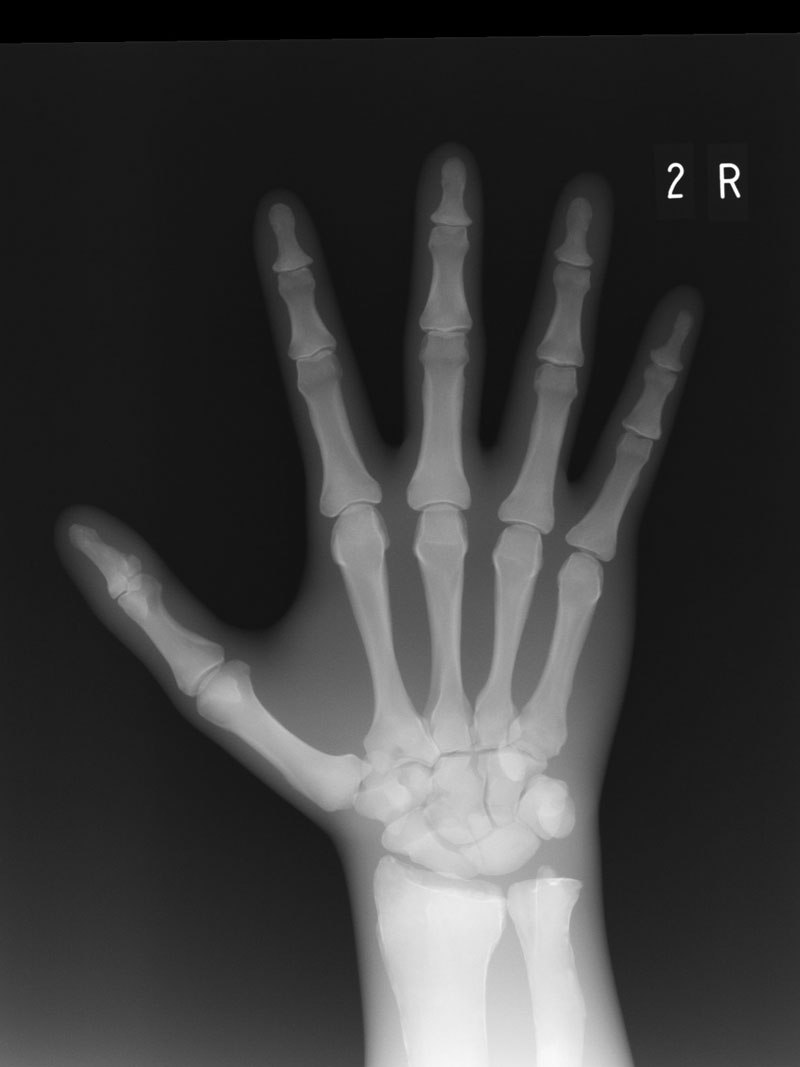

Photos

Models

• 41350-200 - CT Whole Body Phantom "PBU-60"
• 41363-070 - storage cases (consist of 2 boxes)
• 41350-200-16 - body plates for PH-2/2B (BMI 32)
• 41350-200-17 - body plates for PH-2/2B (BMI 40)

Brochure

• Whole Body Phantom Brochure
