Description

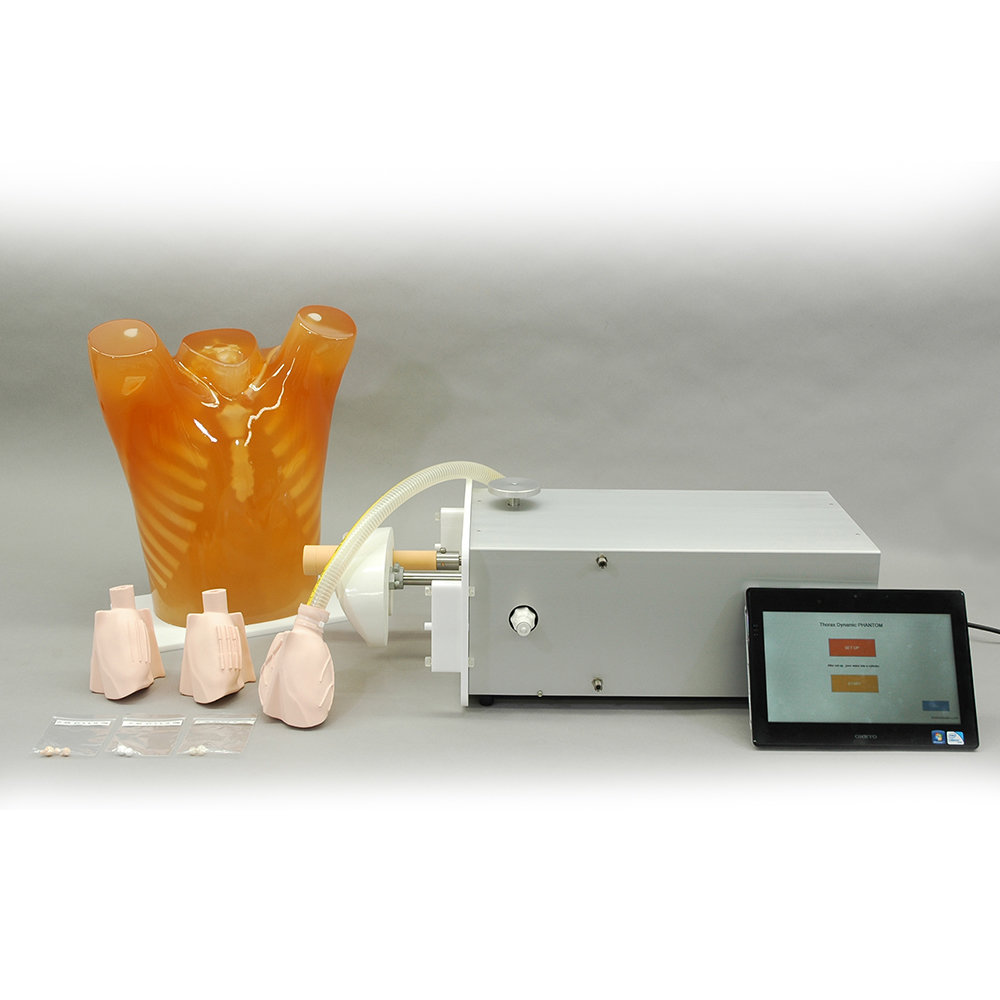

Dynamic Heart and Lung Phantom is an anthropomorphic chest phantom with motion that represents movement of the heart and lung.

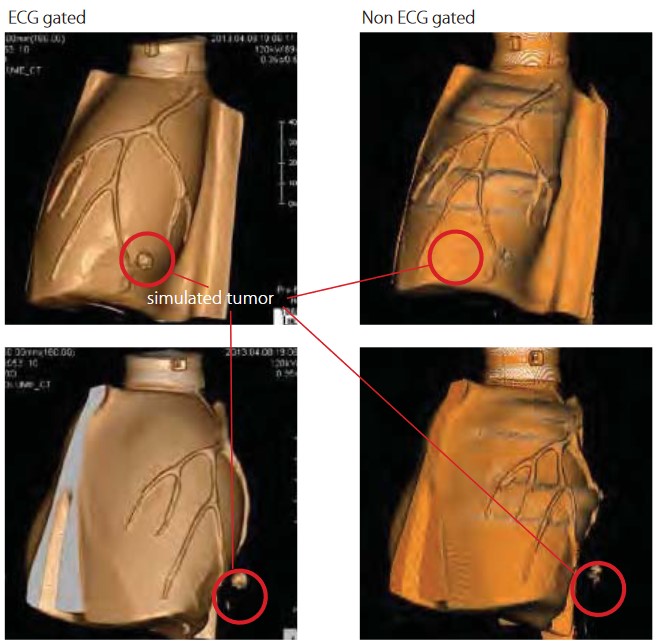

The phantom can be used for ECG gating cardiac CT as well as for the study of motion artifact in MDCT. The simulated tumor with 3 dimensional movement facilitate evaluation on tumor tracking application in radio therapy.
- Applications
- Respiratory gating chest CT
- Tumor tracking in radiotherapy
- ECG gating cardiac CT
Specifications
- Set Includes:
- 1 drive unit
- 1 nodule rotation unit
- 1 diaphragm block
- 1 chest phantom
- 3 types of heart unit
- 1 set of simulated tumors (15 types)
- 1 tablet PC
Anatomies:
Synthetic bones of the chest
Heart, diaphragm
Pathologies:
pulmonary nodule, stenosis of coronal artery
- Controllable Parameters
- Heart rate: 30-120 times/min
- Cardiac output: 60,70,80,90, 100mm
- EF rate: 30%, 35%, 40%, 45%, 50%, 55%, 60%
- Respiratory rate: 6-24 cycles/min
- Linear movement of nodule unit: 8-64mm / 0-1.5 inch
- Rotation range of nodule unit: 50-70 degrees
Photos
Models
- 41327-000 - Dynamic Heart and Lung Phantom PH-48
Dynamic Heart and Lung Phantom Brochure
