Description

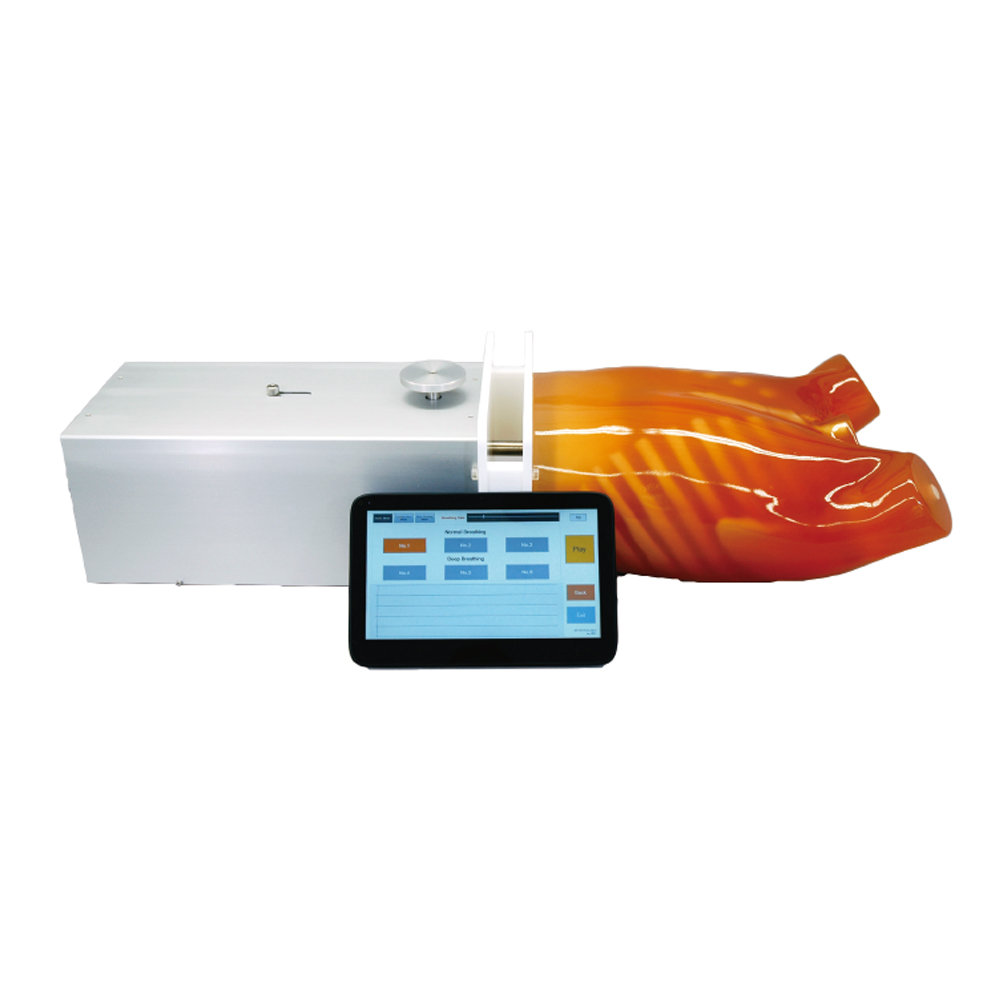

Dynamic Thorax Phantom is designed to represent the movement of human lungs. A male chest torso phantom with original human tissue substitute materials. Simple operation with the wireless tablet. The pulmonary nodule and the diaphragm move independently with the respiratory cycle. Three dimensional movement of the pulmonary nodule (linearly and rotationally). TLD can be inserted to simulate the nodule. Controllable parameter includes respiratory rate, range of movement of diaphragm, range of linearly movement and the rotation to the nodule. Six preset respiratory patterns are prepared. Respiratory patterns can be modified and saved. Up to three different respiratory patterns can be run in sequence. Three operation modes are prepared: basic mode, combination mode and user mode.
Specifications
- Set Includes:
- 1 drive unit
- 1 chest phantom
- 1 mediastinum phantom with right pulmonary vessels
- 1 nodule rotation unit
- 1 diaphragm block
- 1 set of simulated nodules
- 1 controller
- 1 storage case
- Controllable Parameters
- Respiratory rate: 6-24 cycles/min
- Movement of diaphragm: 0-38 mm / 0-1.5 inch
- Linearly movement of nodule unit: 38-64mm / 1.5-2.5 inch
- Rotation of nodule unit: 50-70 degrees
Photos
Models
- 41326-000 - Dynamic Thorax Phantom PH-39
Dynamic Thorax Phantom PH-39 Brochure
