Description
- Water Equivalent Material, various inserts and empty bottles enable to verify the appropriate Multi-Energy CT settings
- Phantom using innovative Water Equivalent Material
- Empty bottles enable to put various items and check how they react to Multi Energy CT
- Save time and efforts to produce custom-made water phantoms
- Two different sizes of body. (TR-I, TR-J)

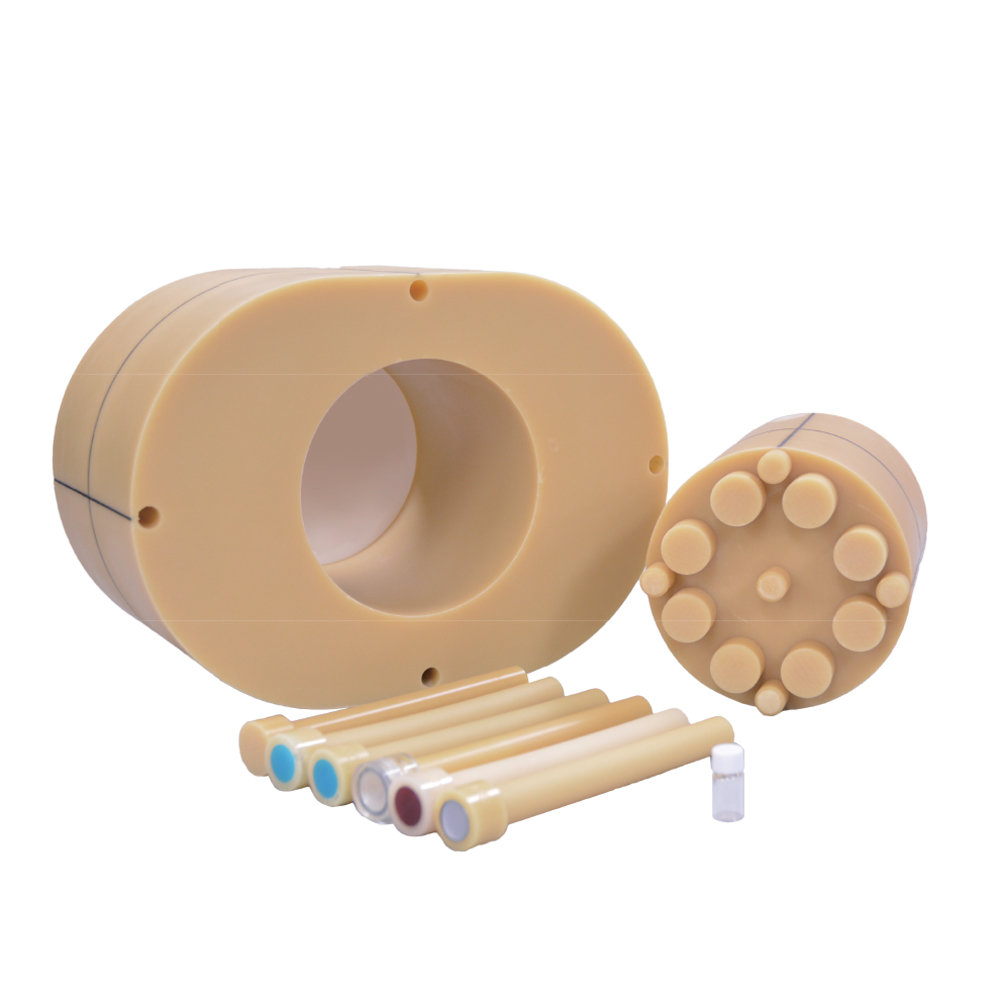

Specifications
- 1 Truck phantom
- 1 Internal cylindrical phantom
- 9 Filling inserts for dosimeter holes
- 8 WEM inserts
- 3 Iodine inserts (4, 8, 12mgl/mL)
- 1 Titanium inserts
- 1 Soft tissue insert
- 1 Water container inserts
- 20 Empty bottle
- 8 Spacer for empty bottle
- Manual
| Color | Name | Size | Quantity |
|---|---|---|---|
| Silver | Water Equivalent Material Inserts | Ø20mm | 8 |
| Red | Titanium Insert | Ø12mm | 1 |
| Blue | Soft tissue (equivalent to liver) | Ø20mm | 1 |
| Blue | Iodine concentration 4mgl/mL | Ø20mm | 1 |
| Blue | Iodine concentration 8mgl/mL | Ø20mm | 1 |
| Transparent | Iodine concentration 12mgl/mL | Ø20mm | 1 |
| Water container | Ø20mm | 1 | |
| Empty bottle with spacer *for experiment | 20 |
Photos
Models
- 41941-100 - Multi Energy CT Quality Assurance Phantom
