Description

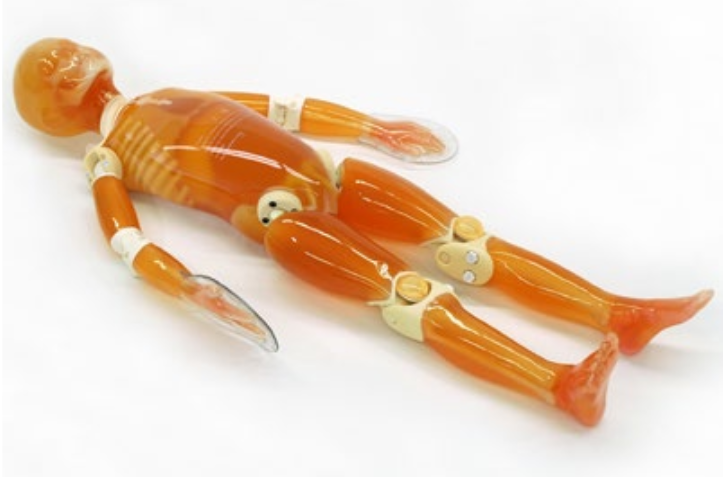

This phantom representing a five-year-old child is easy to position, and provides complete bone images for every joint.
- Radiology Absorption and HU number approximate to human body.
- Main joints have close-to human articulation.
- Phantom can be disassembled into 10 individual parts
Specifications
- Anatomy:
- skull / spine/ clavicles / scapulae / ribs / sternum / coxal bones / humerus / antebrachial bone / bones of hand / femur / patella / lower leg bone / bones of foot
- Internal organs:
- lung with pulmonary vessels/ trachea (up to primary bronchi)/ heart/ liver with portal and hepatic veins
- Materials:
- Soft tissue: urethane based resin (density: 1.06)
- Synthetic bone: epoxy resin (density: 1.31)
- Skull: epoxy resin (density: 1.11)
- Phantom has no metal parts or liquid structure
- Dimensions:
- Phantom height: 110 cm
- Packing size: W86 x D60 x H32 cm
- Phantom weight: 20 kg/ 44 lb
Photos
Models
- 41350-300 - Pediatric Whole Body Phantom "PBU-70"
- 41350-500 - Bone Fracture Pediatric Phantom "PBU-70B"
- 41363-080 - storage case for PH2C/2D
Pediatric Body Phantom "PBU-70" Brochure
