Description

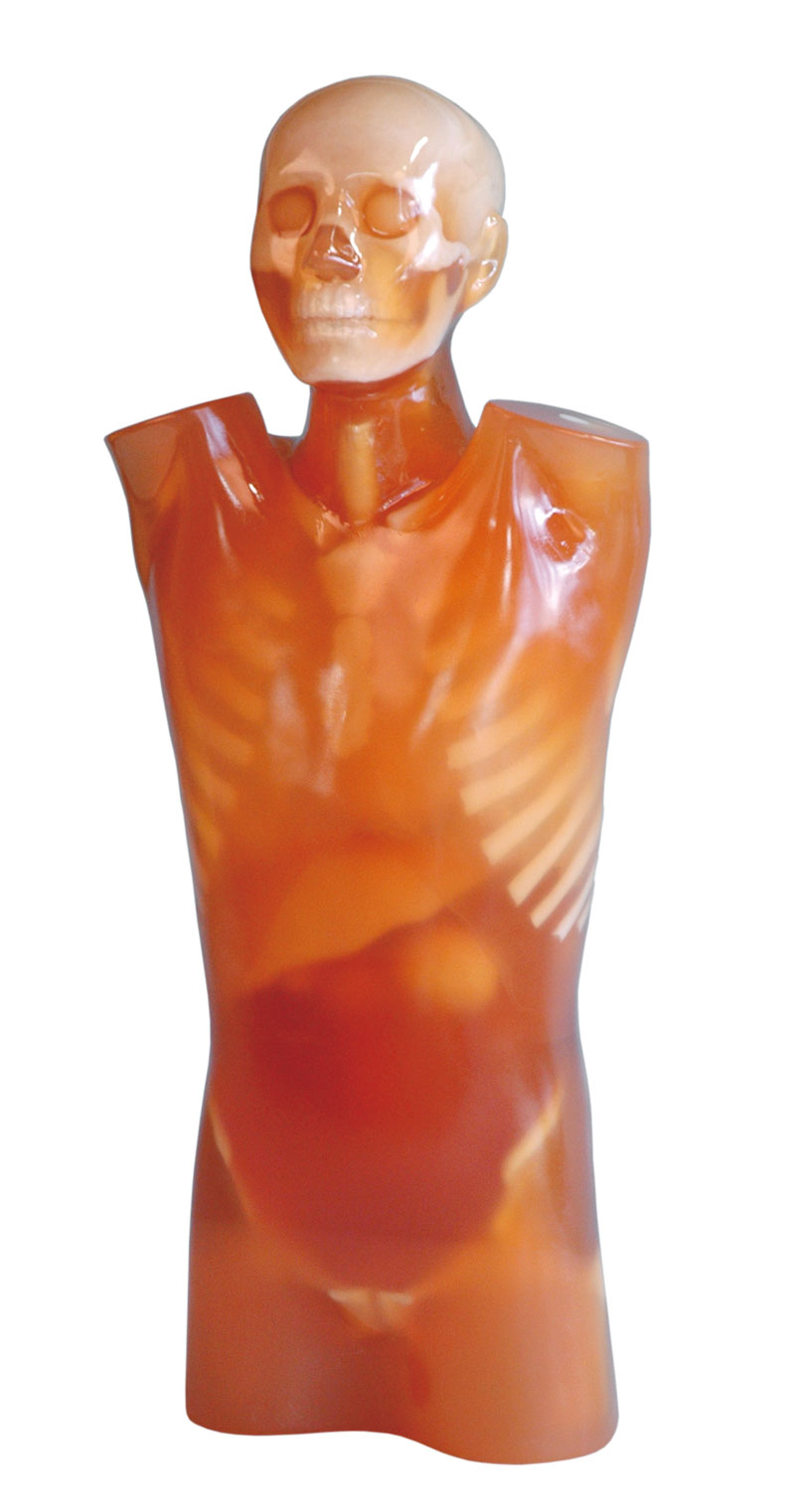

A one-piece anthropomorphic torso phantom with anatomical structures allows various CT approaches including helical scanning. Along with state-of-the-art synthetic bones, brain with cerebral ventricles, eye balls, full internal organs are embedded. Each individual organ has particular Hounsfield number which corresponds that of human body.
- One-piece structure of the phantom facilitate study in volume CT scan including helical scan.
- The phantom can be used for alignment in Image Guided Radiation Therapy (IGRT).
Specifications
- Set includes:
- 1 CT torso phantom
- Synthetic bones with cartilage, artificial skull, vertebrae, clavicles, ribs, sternum, scapula, coxal bones, femur
- Internal organs: Soft tissue around each organ, Brain, Ventricles, Eye balls, Aorta, Vena Cava, Trachea (Up to the first branch, The second –the third branch), Heart, Pulmonary Blood Vassal, Cartilage in Costae, Liver (Whole, Vein), Gallbladde, Pancreas, Spleen, Kidney (Whole, Vein, Urethra ), Urethra, Urinary Bladder
- 1 storage case
- Materials
- Soft tissue: urethane based resin (specific gravity: 1.06)
- Synthetic bone: epoxy resin (specific gravity: 1.31)
- Dimensions:
- Phantom height: 100 cm
- Phantom weight: 45 kg/ 99 lb

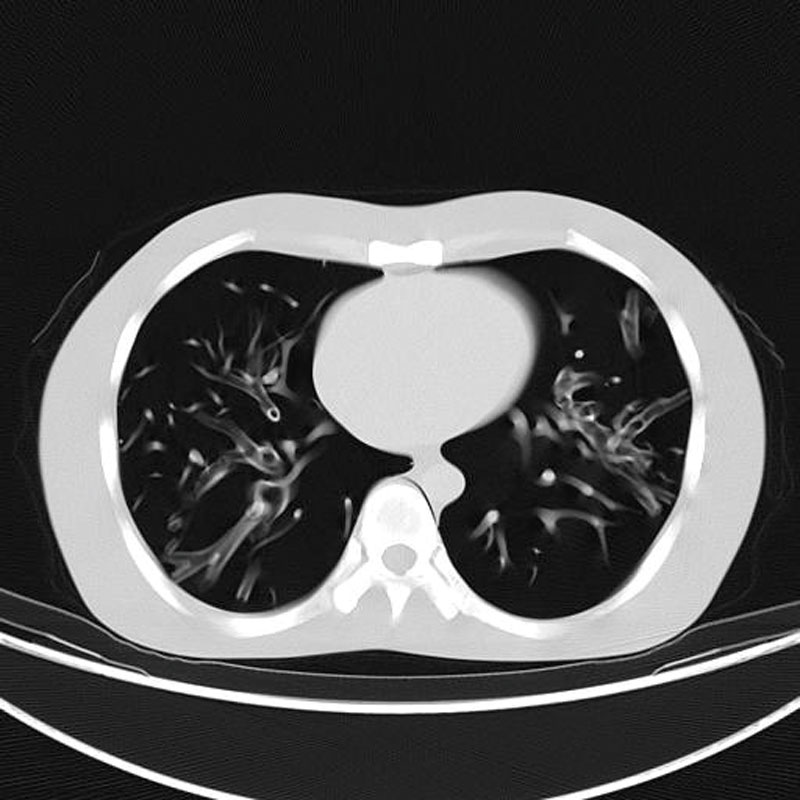

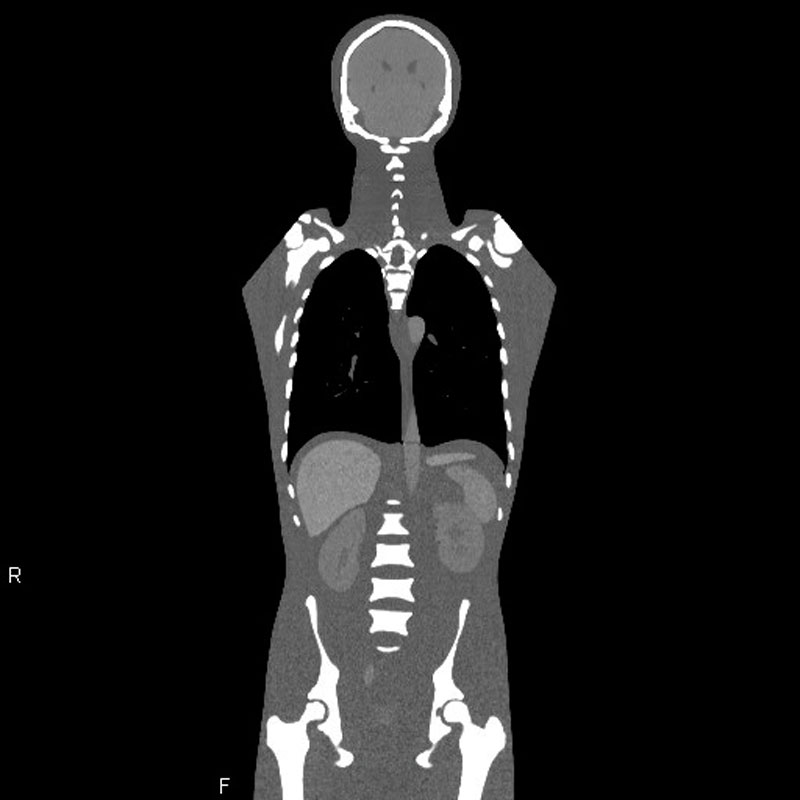

Photos
Models
- 41324-040 - CT Torso Phantom CTU-41
CT Torso Phantom CTU-41 Brochure
