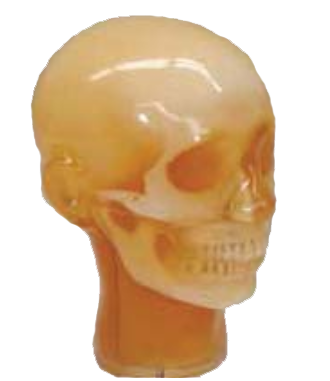

Description
- Separately modeled each tooth has a three-layer structure of enamel, dentin and pulp cavity
- Each hard tissue (enamel, dentin, cortical bone and cancellous bone) has a particular HU number and X-ray absorption rate
- Jaws and tongue are detachable to allow access to the oral cavity, pharyngeal cavity and maxillary sinus. Censors, simulated lesions, or residue can be set in these cavities
- Carotid arteries are prepared as lumens to accommodate simulated calcifications
Specifications
Applications:

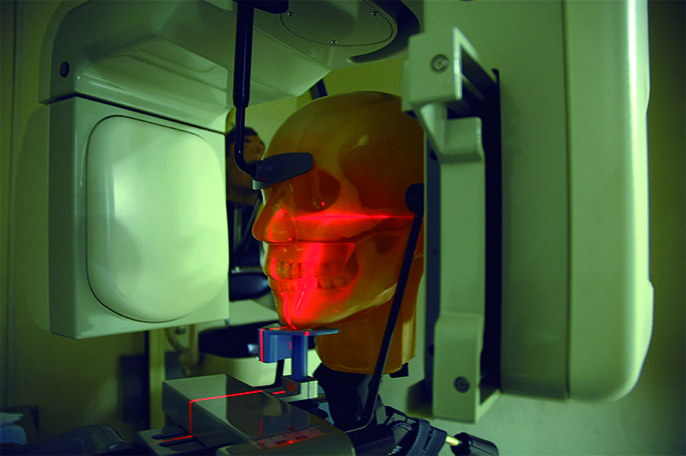

- Radiography panoramic extra-oral
- Radiography intra-oral
- CT
- Cephalography and other head radiography
Anatomy:
- Synthetic skull with nasal cavity, maxillary sinus, mandible alveolar, maxillary alveolar, cervical vertebrae and hyoid bone, teeth with enamel, dentin and pulp cavity.
- Tongue, oral cavity, pharyngeal cavity and carotid arterie
Set includes:
- 1 main head unit
- 1 upper jaw (alveolar bone)
- 1 lower jaw (alveolar bone)
- 1 tongue
- 1 fixation base (including screws)
- 1 tripod

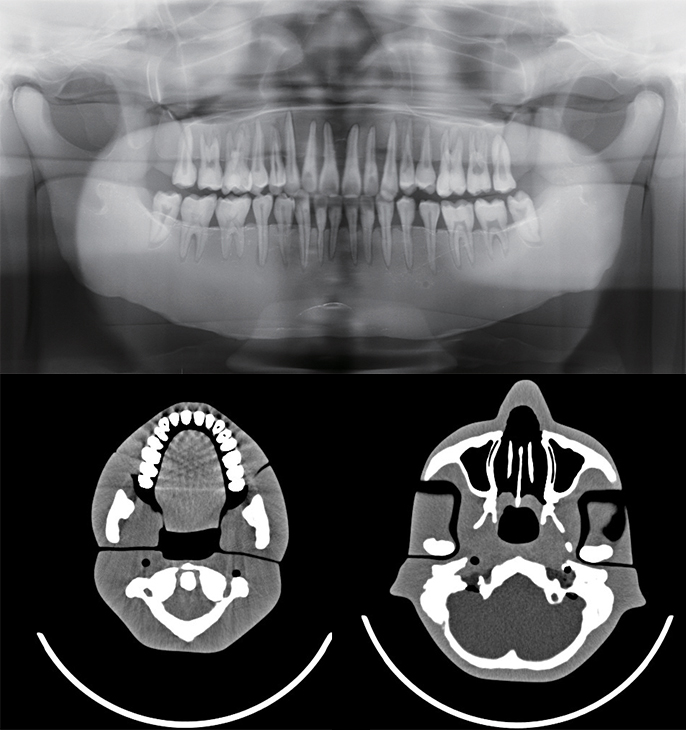

- 1 set of sample X-ray data (DVD)
- 1 storage case
Dimensions:
- 20 x 21 x 25 cm (WxDxH)
- Phantom Weight: 4.8 kg
Models
- 41301-300 - Dental Radiography Head Phantom (Two-way set)
- 41301-400 - Dental Radiography Head Phantom (Mouth open)
- 41301-500 - Dental Radiography Head Phantom (Mouth closed)
Dental Radiography Head Phantom Brochure
