Description
Solution for all needs in beam verification, including advanced MagicMaX Software for fast and complete dose measurement overview. USB- plug & play allows fast and seamless workflow with ONE minute setup time. The Multimeter is designed according to IEC 61674 & IEC 61676. With Conformity Statement for German acceptance tests.
Microsoft Excel export With the embedded Excel export, the user can fulfill regulatory needs as well as execute in-depth performance analyses by using the predefined templates or by easily creating customized measurement procedures.
Specifications
- External Input Connector: LEMO triaxial male (NIM-CAMAC) 7-pin Multiconnector
- Interface: USB 2.0
- Max. data rate: 12 Mbit/s
- Max. USB load: 2 Unit Loads (200mA)
- USB connector type: USB Mini-B
- USB cable type: USB 2.0 compliant (tdelay < 5.2 ns/m)
- Leakage Current: ≤ 0.1 pA
- Max. Input Current: ≤ -3 μA
- Power Supply: USB powered
- Recording time resolution: 0.1 ms
- Max. recording time: 300 s
- Size (L x W x H): 100 mm x 30 mm x 20 mm (3.9” x 1.2” x 0.8”)
- Weight: 75g (0.17 lbs)

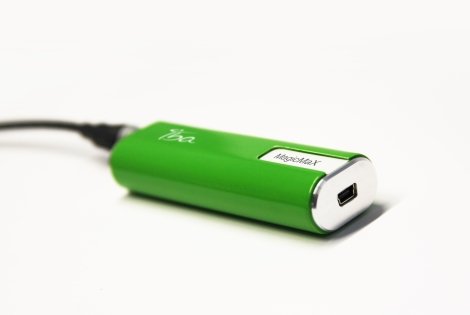

Photos
Models
- VD0202010 - MagicMaX Universal
- VD0201975 - MagicMaX Current Probe (Invasive and non-invasive measurements)
- VD0201951 - Illuminance-Detector-LX-LS
- VD0202030 - Multidetector XR (radiography)
- VD0202040 - Multidetecteor XM (mammography)
- VD1020110 - Ionisation chamber DCT10-MM
- VD0225134 - transport case MagicMaX Full-QA
MagicMax Universal Solutions Brochure
