Description

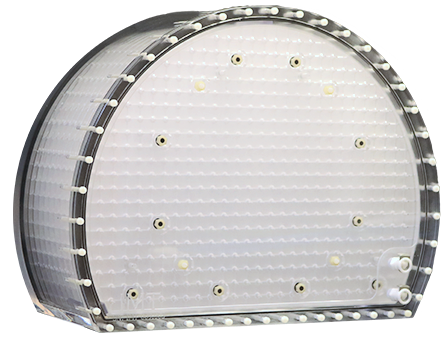

The GrID Phantom is designed for MR Image Distortion assessment in all three axes to identify hardware-related geometric inaccuracies. The 3D volume of the GrID is comprised of 9 image planes with more than 4,500 spherical fiducials. GrID can be scanned in Axial, Saggital, and Coronal orientations.

• The GrID Phantom is designed for MR Image Distortion assessment
• Verify MR Image Distortion in 6 Axes to Identify Hardware-Related Geometric Inaccuracies
• The 3D volume of the GrID Phantom is comprised of 9 Image Planes with 4,689 individual Spherical Fiducials
• Maximum Scan Plane Field of View
• Can be scanned in Axial, Saggital, and Coronal orientations
• Solid Acrylic Construction

Specifications

• Physical size: 465*350*168 mm
• Weight (filled): 40 kg
• D = 8 mm, center-to-center 16 mm (+/- 1mm)

Photos

Models

• IMT-009 - GrID Phantom
