MRI Patient Transport Tables

Home \ Medical Imaging \ MRI \ MRI Patient Transport Tables

Description

MRI Patient Transport Tables

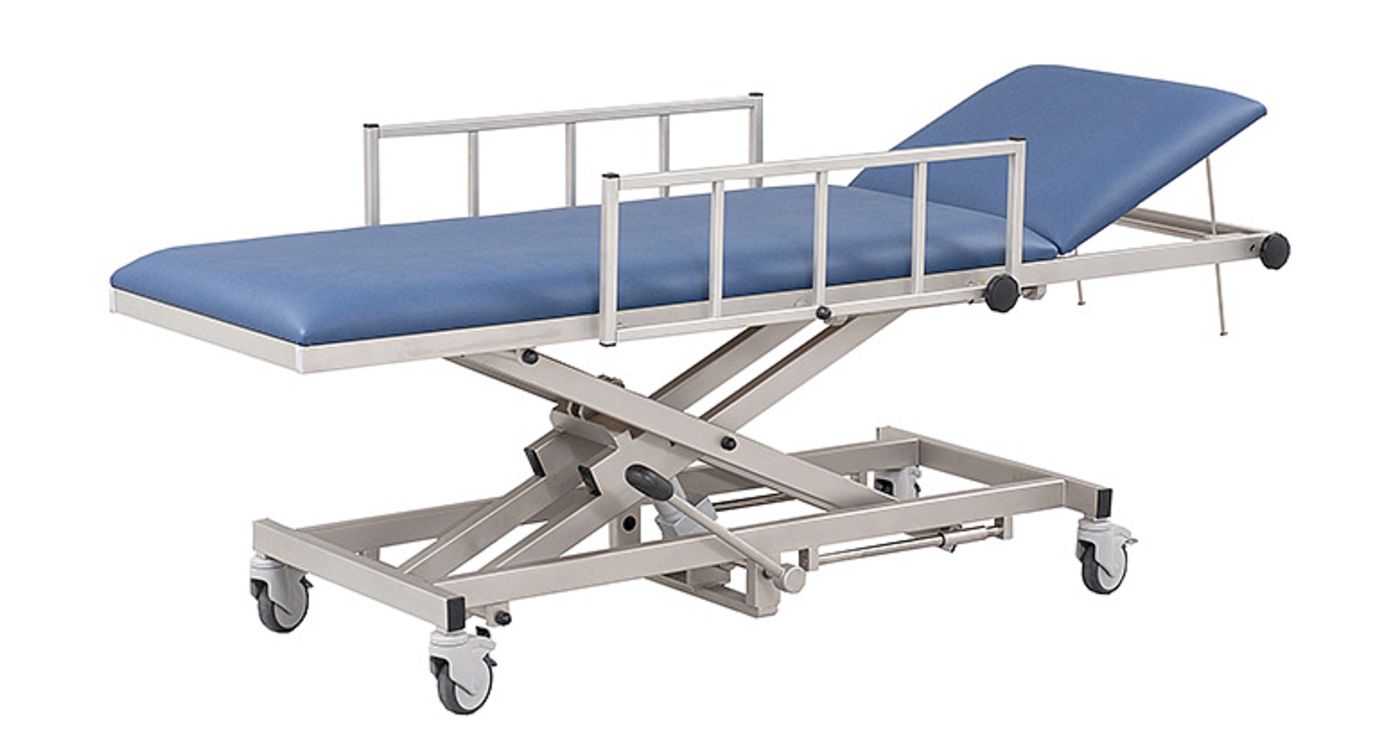

Our product line of MRI-compatible patient transport tables/stretchers with hydraulic height adjustment includes four different versions: with or without side guards, and in the widths of 650 or 800 mm. They are made of very slightly magnetic stainless steel and suitable for all MR systems up to 3 Tesla (according to their compatibility data sheets).

    The MRI patient transport tables with hydraulic height adjustment can be used safely under the following conditions:
  • Static magnetic field of maximum 3 Tesla or less,
  • Additionally a spatial gradient of maximum 10,5 T/m or less,
  • The table may not exceed the limit of 10,5 T/m with the head end side/foot end side in sliding in the direction of the magnet.

Specifications

  • The MRI patient transport tables H-AWL 3065/Y 980VA and H-AWL 3080/Y 980VA include two adjustable side guards (800 x 250 mm, LxW) and multidirectional castors (Ø100 mm, all with brakes).
  • In order for these MRI tables to be accessed from both sides, the side guards can be adjusted up or down with a simple rotation mechanism and locked in place with a sliding bolt.
  • The height-adjustable MRI tables are available in two standard tabletop widths of 650 mm (Article No. H-AWL 3065/Y 980VA) and 800 mm (Article No. H-AWL 3080/Y 980VA).
  • However, please take into consideration the overall width including the side guards: With side guards, model H-AWL 3065/Y 980VA has a total width of 795 mm and H-AWL 3080/Y 980VA, a total width of 975 mm.
  • The MRI patient transport tables H-U 3065/Y 980LRVA and H-EKG 3080/Y 980LRVA feature four locking castors (Ø100 mm) but do not include side guards.
  • Continuous adjustment of the headrest and side guards


  • MRI Patient Transport Tables

Models

  • H-AWL 3065/Y 980VA - The MRI patient transport tables with hydraulic height adjustment (width of 650 mm)
  • H-U 3065/Y 980LRVA - The MRI patient transport tables with hydraulic height adjustment / without side guards (width 650 mm)
  • H-AWL 3080/Y 980VA - The MRI patient transport tables with hydraulic height adjustment (width 800 mm)
  • H-EKG 3080/Y 980LRVA - The MRI patient transport tables with hydraulic height adjustment / without side guards (width 800 mm)
