Description
-
Evaluation of cardiac ECT data acquisition and reconstruction methods
- Quantitative evaluation of non-uniform attenuation and scatter compensation methods
- Research
-

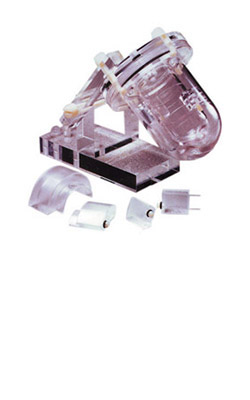

Designed to be used with the various Data Spectrum circular and elliptical cylinders, the Elliptical Lung-Spine Body Phantom™ and the Anthropomorphic Torso Phantom™
- Simulates normal and abnormal myocardial uptake and radioactivity in left ventricular chamber
- Solid inserts simulate transmural and nontransmural cold abnormalities
- Fillable inserts can be used to simulate transmural and non-transmural cold or hot abnormalities
Specifications
- Ventricle" overall length: 9.3 cm
- Ventricle" overall diameter: 6.1 cm
- Myocardium" thickness: 1.0 cm
- Myocardium" volume: ~ 110 mL
- Ventricle" volume: ~ 60 mL
Solid Defect Set:
- 60° x 2 cm
- 45° x 1.5 cm
- 60° x 2 cm, with 5 mm wall thickness(non-transmural defect)
Fillable Defect Set:
- 180° x 2 cm .................................................~13 mL
- 90° x 2 cm ...................................................~5.4 mL
- 45° x 2 cm ...................................................~3.8 mL
- 45° x 2 cm with 5 mm thick chamber*....~1.4 mL
