Description

Main Applications:
• Acceptance testing of PET/CT and SPECT/CT systems
• Routine quality evaluation of PET/CT and SPECT/CT Systems
• Evaluation of new image fusion software
• Evaluation of new attenuation correction algorithms
• Aluminum tubes are for registration
• The outer 2" OD micro cylinder is for comparing attenuation region to non attenuation region
• The 6" ring is for contrast solution
• Research

Main Features:

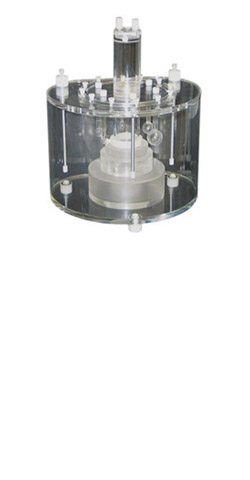

• The PET-CT Phantom™ includes internal structures (three rods and six spheres) which when imaged with both modalities can demonstrate how accurately the two image sets are aligned
• In addition, a single sample of radioactive water is attenuated by water, bone, and CT contrast material (as well as air only) to determine how accurately the CT-based PET attenuation correction works

Specifications

• Interior length of phantom: 18.0 cm
• Fillable spheres (5) inner diameter: 10 mm, 13 mm, 17 mm, 22 mm, and 28 mm
• Distance from sphere plane to inside wall: 7.0 cm
• Volume of empty cylinder: ~9.7 liters

Main Cylindrical insert dimension:
• Outside diameter: 5.1 cm
• Length: 18.0 cm

Top Cylinder:
• Cylinder outside diameter: ~5.1 cm
• Cylinder inside diameter: ~4. cm
• Cylinder inside height: ~8.2 cm
• Cylinder outside height: ~12.0 cm
• Volume of empty cylinder: ~408 mL

Three Aluminum Tubes:
• One 5 inch long: ~1.7 mL
• Two 7 inch (ea): ~ 2.5 mL

Stepped Bone Ring:
• Pre-filled with liquid bone composition, not to be opened The volumes for the bone ring are:
• Outer volume: ~256 mL
• Inner volume: ~110 mL

Models

• PET/CT/P - PET-CT Phantom
