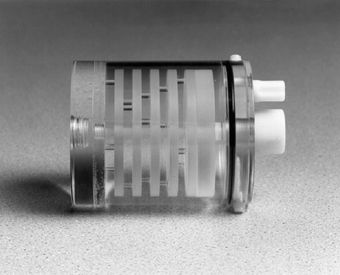

Mini Defrise Phantom
Model ECT/DEF/MP


Main Applications:

  • Small animal system evaluation (with field-ofview greater than 77 mm)
  • Evaluation of ultra-high resolution ECT systems (less than or equal to 3 mm FWHM)
  • Evaluation of slice profile uniformity along longitudinal axis of an ECT system
  • Evaluation of ultra-high resolution, fan-beam, cone-beam and pinhole collimation
  • Research

Specifications

  • Cylinder outer diameter: 8.3 cm
  • Cylinder inside diameter: 7.6 cm
  • Cylinder inner height: 5.7 cm
  • Disk diameter: 7.5 cm
  • Disk thickness: 4.3 mm
  • Gap thickness: 4.3 mm
Mini Defrise Phantom

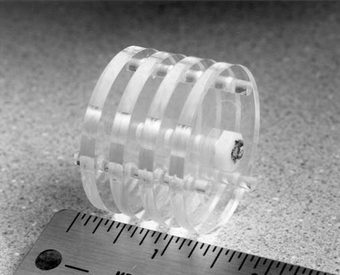

Micro Defrise Phantom
Model ECT/DEF/MMP

Micro Defrise Phantom

Main Applications:

  • Small animal system evaluation (with field-ofview greater than 45 mm)
  • Evaluation of ultra-high resolution ECT systems (less than or equal to 3 mm FWHM)
  • Evaluation of slice profile uniformity along longitudinal axis of an ECT system
  • Evaluation of ultra-high resolution, fan-beam, cone-beam and pinhole collimation
  • Research

Specifications

  • Cylinder outer diameter: 5 cm
  • Cylinder inside diameter: 4.5 cm
  • Cylinder inner height: 6.3 cm
  • Disk diameter: 4.3 cm
  • Disk thickness: 4.3 mm
  • Gap thickness: 4.3 mm
