TG-142 Check Phantom

Description

TG-142 Check Phantom

The purpose of the TG-142 Check Phantom + iQA is to provide an efficient, budget-friendly constancy check workflow and data collection solution for monthly QA in accordance with the AAPM TG-142 Protocol.

    Audience
  • Clinical Physicists responsible for multiple machines at one site, or many sites
  • RO Networks seeking data-driven hardware and process monitoring to achieve standardization
  • LINAC manufacturers seeking a standardized and efficient solution for TG-142 implementation
  • Research & Education organizations

Specifications

    Key Features
  • < 90 Minutes Start to Finish (Monthly)
  • Simple, Step-By-Step Protocols
  • iQA Auto Analysis Software

The TG-142 Check Phantom + iQA checks these items for AAPM TG-142 Monthly:

    Mechanical
  • Jaw Position & Light Field Coincidence
  • Light Field vs Radiation Field Coincidence
  • ODI Verification
  • Table / Couch Angles
  • MLC Leaf Position Accuracy
  • Picket Fence
    Output
  • Photons & Electrons
  • Typical Dose Rate Output Constancy
  • Dynamic Wedge Constancy
  • Energy Constancy
  • Flatness & Symmetry (Profile Constancy)
    MV EPID, kV Planar Imaging
  • Scaling
  • Spatial Resolution
  • Contrast
  • Noise
  • Uniformity
    CBCT Imaging
  • HU Constancy & Contrast Visibility
  • Geometric Distortion
  • Spatial Resolution
  • Low Contrast Resolution
  • Noise
  • Uniformity

Photos

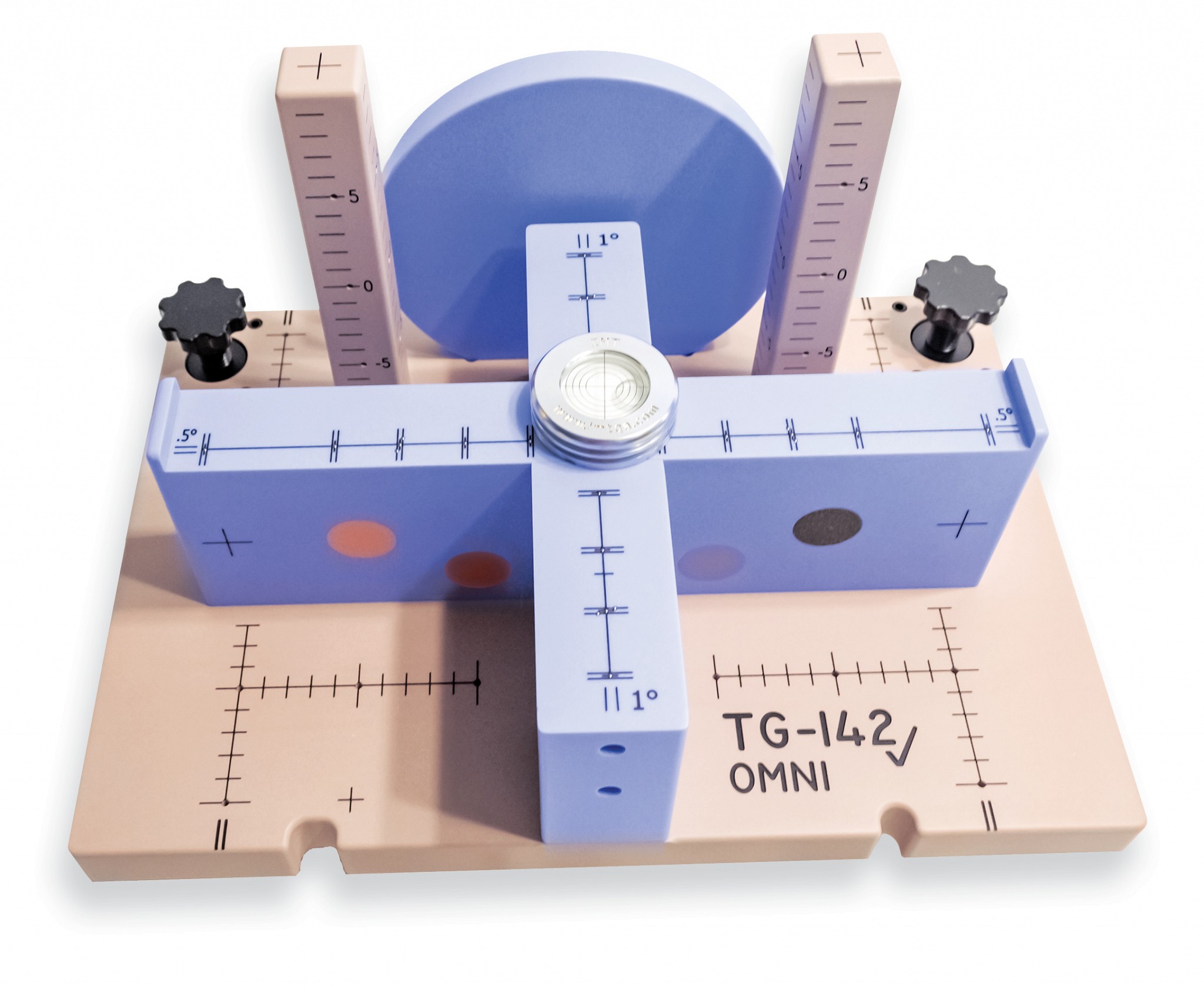

  • TG-142 Check Phantom

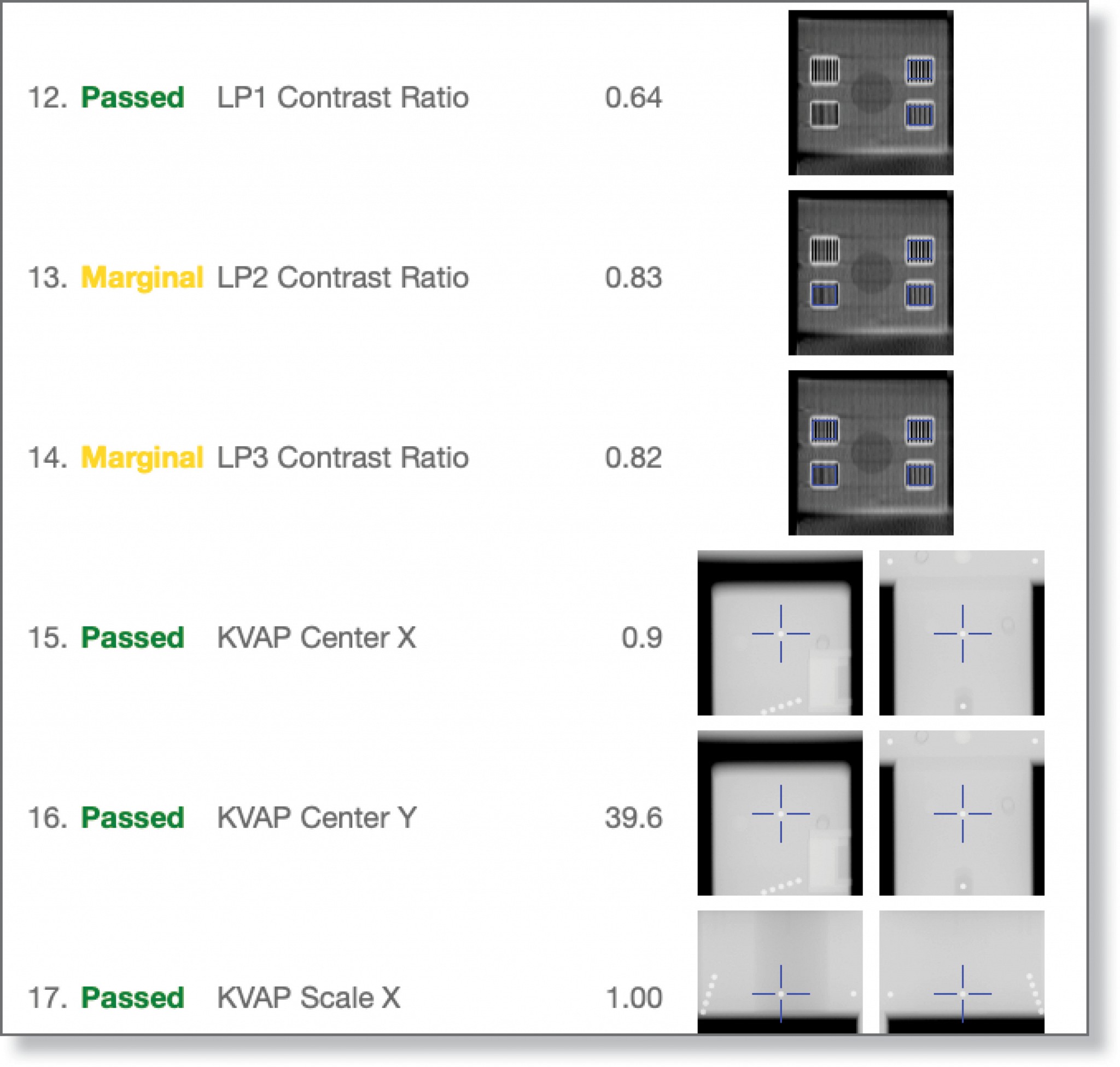

  • TG-142 iQA

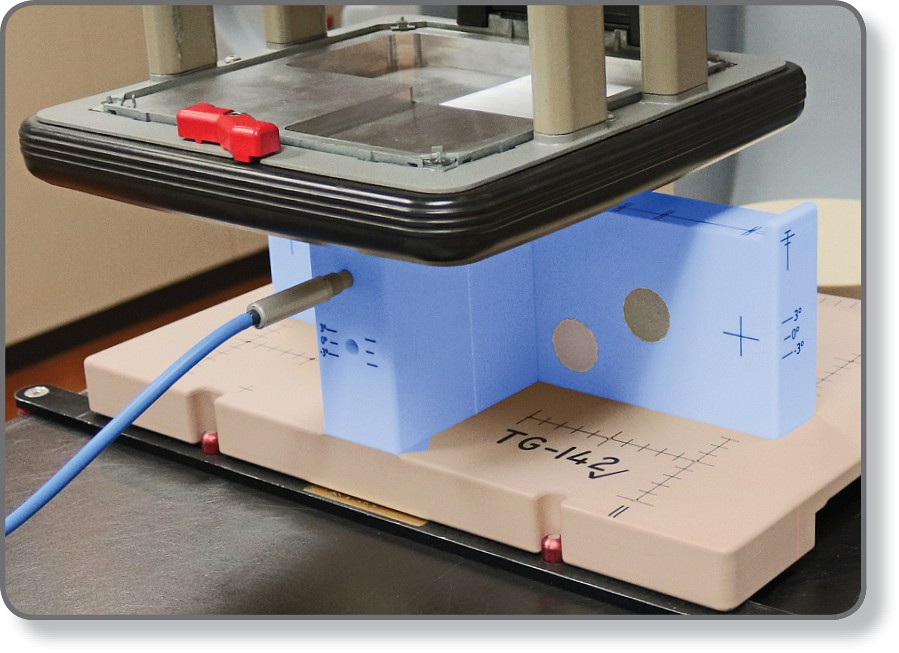

  • TG-142 Check Phantom 2

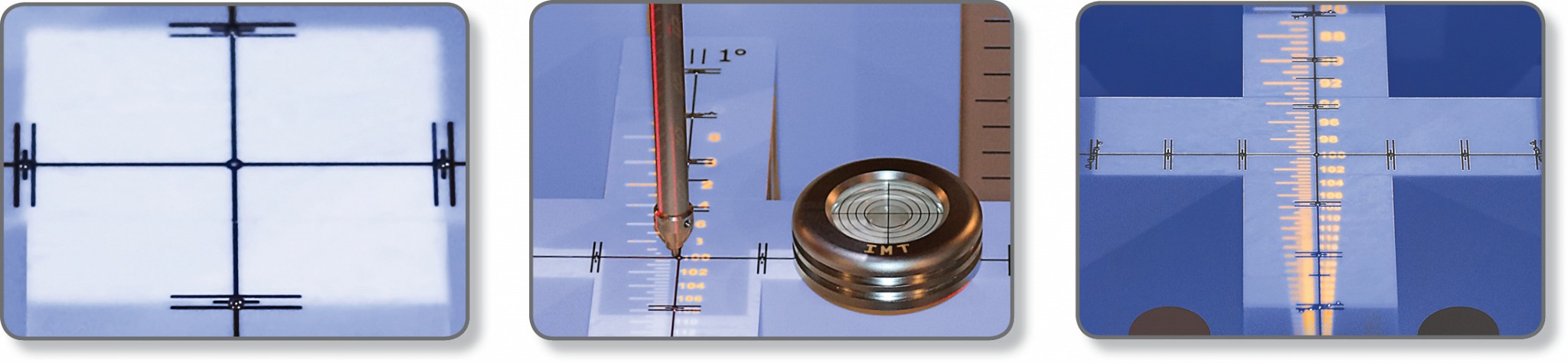

  • Precision Bubble Level included

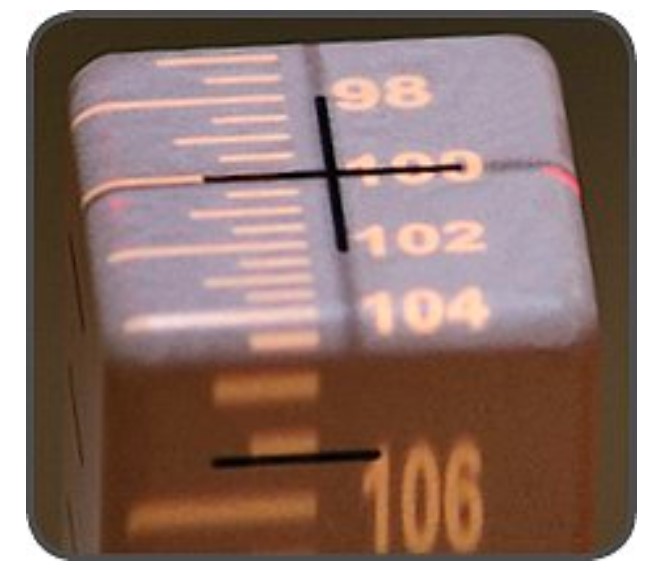

  • TG-142 Focus

Models

  • IMT-033 - TG-142 Check Phantom
